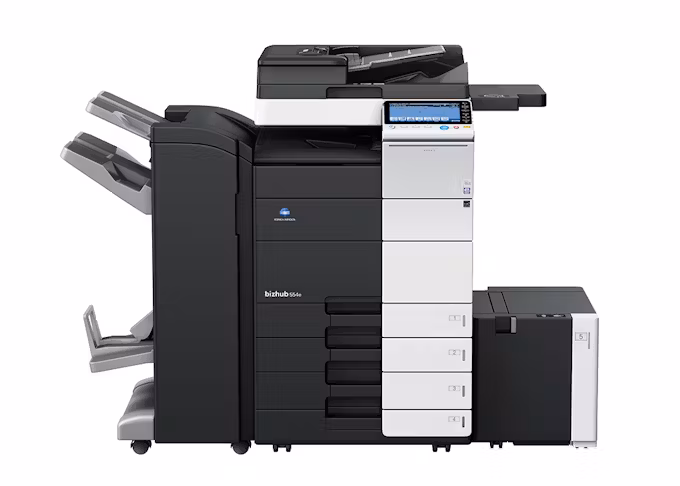

bizhub 554e - DISCONTINUED

Take productivity to a higher level with fast output, superb image quality, powerful print control.



See latest products

Key features

MONO
55 ppm
9" touch screen
Easy to use
PAPER CAPACITY
6,650 sheets
STANDARD DUAL SCANNING
180 opm
Other features:
  • High-speed 55 ppm B&W print/copy output to keep pace with rising demands
  • Dual scanning at up to 160 opm for faster document capture and distribution
  • Built-in Emperon print system with PCL6/PS3 emulation, native XPS
  • Large 9” color display -- makes the bizhub 554e multifunction printer and copier as simple to operate as a familiar tablet
  • Multi-touch functions: swipe, drag, double-tap, toggle, pinch
  • Transparent menus, customizable icons, improved soft keyboards
  • Integrated software control for legal, healthcare, education and government

Take productivity to a higher level with fast output, superb image quality, powerful print control.

Specifications

Device TypeMultifunction Printer
Product CategoryOffice
Colour or MonoMono
Print Speed51-59 PPM
Mono Output Speed (A4 pages per min)55
Print Resolution(dpi)1200 x 1200
Copy Resolution (dpi)600 x 600
First Time To Print Mono (secs)4.1
Warm Up Time (secs)22
Output SizeSRA3 to A5, B6 Lengthwise, A6 Lengthwise Thick Paper, Foolscap* (200 × 330mm), 8K, 16K, Long Length Paper (210 × 457.3mm to 297 × 1200mm),* Set by Customer engineer
Output Size MaxSRA3
Standard Paper Input Tray 1 (Sheets)500 (up to A3)
Standard Paper Input Tray 2 (Sheets)500 (up to SRA3)
Standard Paper Input Multiple Bypass (sheets)150 (up to SRA3)
Maximum Paper Input (sheets)6650
Paper Weight Trays (gsm)(Tray 1/2) 52 - 256
Paper Weight Multiple Bypass (gsm)52 - 300
Standard Memory (GB)2 (Max 4)
Hard Drive Standard250
Document Feeder (sheets)100
Weight (kg)(Approx) 101
Dimension W x D x H (mm)615 × 685 × 921
Dimension InclusionsDimensions include Automatic Document Feeder (ADF)
Power Requirements (V / Amp / Hz)220-240V / 9A / 50-60Hz
Max Power Consumption (kW)2
Energy Star Typical Energy Consumption (kWh/week)3.55
Automatic Duplex Unit Paper Weight (gsm)52 to 256 gsm
Automatic Duplex Unit Max Sheet SizeSRA3
Scan TypeFull colour scanner
Scanning Speed Simplex Max (ipm)80
Scanning Speed Duplex Max (ipm)160
InterfaceEthernet (10BASE-T / 100BASE-TX / 1000BASE-T)
ProtocolTCP/IP (FTP, SMB, SMTP)
Dual ScanYes
Scanning Size MaxA3
Scan ResolutionPush: 200 dpi / 300 dpi / 400 dpi / 600 dpiPull: 100 dpi / 200 dpi / 300 dpi / 400 dpi / 600 dpi
Output FormatTIFF, JPEG, PDF, Compact PDF, XPS, Compact XPS, PPTx, DOCx*, XLSx*, Searchable PDF*, PDF / A*, Linearised PDF *optional
Main FunctionsScan to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB), Network TWAIN, Scan to WebDAV, Scan to Me, Scan to Home, Scan to USB, Scan to Scan Server, Scan to Web Service (WSD-Scan), Device Profile for Web Services (DPWS)
Modem TypeSuper G3
Modem Speed2.4 to 33.6
Transmission Speed3
Scanning Speed55
Number of Stored Destinations2000
Number of One Touch Destinations400
Number of Group Destinations100
Internet Fax ProtocolSMTP, POP
Internet Fax Resolution200 x 100, 200 x 200, 400 x 400, 600 x 600
Internet Fax InterfaceEthernet (10BASE-T / 100BASE-TX / 1000BASE-T)
Internet Fax ColourYes
Send and Receive File FormatSend: TIFF-F, Receive: TIFF-F Colour / Grey Scale:TIFF (RFC3949 Profile-C)
Operating System SupportWindows 2000 / XP / XP 64bit / Vista / Vista 64bit / 7 / 7 64bit / 8 / 8 64bit / Server 2003 / Server 2003 64bit / Server 2003 R2 / Server 2003 R2 64bit /Server 2008 / Server 2008 64bit / Server 2012 / Mac OS 9.2 / Mac OS X 10.2 / 10.3/10.4 (Power PC) / Mac OS X 10.5 Power PC/Intel / Mac OS X 10.6 /10.7 / 10.8 Intel Linux
ProcessorSOC 800 MHz (DualCore)
Supported ProtocolsTCP / IP, IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, HTTP
Memory(Shared with copier)
Printer LanguagePostScript 3 Emulation (3016), PCL5e/c, PCL6 (Ver. 3.0), XPS Ver. 1.0
Printer InterfaceEthernet (10BASE-T / 100BASE-TX / 1000BASE-T), USB 1.1, USB 2.0, USB Host
