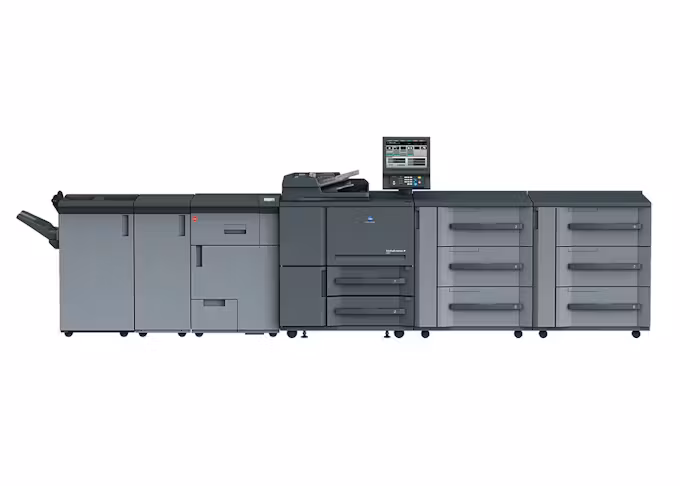

bizhub PRESS 1052e - DISCONTINUED

A fast, powerful digital press to handle high-volume production demands. The bizhub PRESS 1052e provides 105 ppm output in high-resolution black and white - with 2,000,000-page monthly duty cycle and real-time image density and toner ratio sensors to maintain image stability over long press runs.

See latest products



Key features

MONO
105 ipm
Monthly page volume
2,000,000
PAPER CAPACITY
18,000
Finishing
Powerful inline finishing options
Other features:
  • High-speed black and white print/copy output of 105 ppm black and white, with Reversing Auto Document Feeder for fast scanning of hard-copy originals
  • 1200 x 1200 DPI with 256 grey shades for sharper text, denser fills and smoother halftone images
  • Real-time Image Density and Toner Ratio sensors maintain image stability over long digital press runs
  • Large 15” colour touch-screen display for simple on-board digital press control with optional preview
  • 14,000-sheet maximum paper capacity to handle the longest digital press runs with less reloading
  • bizhub PRESS 1052 accepts paper sizes up to 13” x 19.2” and weights up to 350 gsm, with air suction paper feed option to “float” paper for smooth feeding
  • Built-in print controller with PCL, PostScript, PDF and TIFF support

High volume digital monochrome print systems. Fast. Superior. Efficient.

Specifications

Device TypeMultifunction Printer
Product CategoryProduction
Colour or MonoMono
Print Speed101-125 PPM
Mono Output Speed (A4 pages per min)105
Colour Output Speed (A4 pages per min)5000
Print Resolution(dpi)1200 x 1200
Copy Resolution (dpi)600 x 600
First Time To Print Mono (secs)3
First Time To Print Colour (secs)2Gb
Warm Up Time (secs)421
Output SizeA5 – SRA3
Output Size MaxSRA3
Sheet Size PPG Only< or = SRA3
Monthly Print Volume2000000
Average Monthly Volume (A4 pages per mth)500000
Average Monthly Print Volume500K+
Duty Cycle1500000
Standard Paper Input Tray 1 (Sheets)1500
Standard Paper Input Tray 2 (Sheets)1500
Standard Paper Input High Capacity Feeder5000
Maximum Paper Input (sheets)18000
Paper Weight Trays (gsm)40 – 300 gsm, up to 350 gsm with PF-706/703 (middle tray)
Standard Memory (GB)2Gb
Hard Drive Standard250
Document Feeder (sheets)Standard (100 sheet)
Weight (kg)Approx. 375
Dimension W x D x H (mm)990 x 910 x 1233
Dimension InclusionsDimensions include Automatic Document Feeder (ADF)
Power Requirements (V / Amp / Hz)240 / 32
Max Power Consumption (kW)6
Energy Star Typical Energy Consumption (kWh/week)29.3
Automatic Duplex Unit Paper Weight (gsm)300 gsm
Automatic Duplex Unit Max Sheet SizeSRA3
Options Available PPG OnlyProduction Options
Stapling Unit Output4200
Folding and Punching Unit OutputFD-503 (1000)
Multi GBC Punching Unit OutputGP-501
Stacking Unit OutputLS-506 (5000 sheets)
Booklet Making Unit Output50
Perfect Binding OutputPB-503 (300 sheets)
Main Unit Input3000
Paper Feed Unit Input18000
Relay Unit InputRU-506
Scan TypeMonochrome scanner
Scanning Speed Simplex Max (ipm)105
Scanning Speed Duplex Max (ipm)105
InterfaceEthernet 10/100/1000 Base-T, IPv6, USB 2.0
ProtocolTCP/IP
Scanning Size MaxA3
Scan Resolution600 dpi / 400 dpi / 300 dpi
Output FormatPDF, TIFF, Encrypted PDF, XPS
Main FunctionsTWAIN scan , Scan-to-HDD , Scan-to-FTP , Scan-to-SMB , Scan-to-E-mail
Transmission Speed0
Scanning Speed0
Number of Stored Destinations0
Number of One Touch Destinations0
Number of Group Destinations0
Operating System SupportWindows Vista / Vista 64bit / 2000 / XP / Server 2003, MAC OS 10.2 / 10.4 / 10.5
Processor(Pentium G69050) 2.8
Supported ProtocolsTCP/IP (LPR, RAW socket), IPX/SPX (NDS, Bindery), NetBEUI, IPP, Ether Talk
Memory2
Printer LanguagePCL 5e / XL (PCL 6) / Adobe PS 3 / TIFF / PDF
Printer InterfacePDF directprint (PDF Ver.1.7) / TIFF (TIFF Ver.6) direct print / PPML (Ver 2.1)
