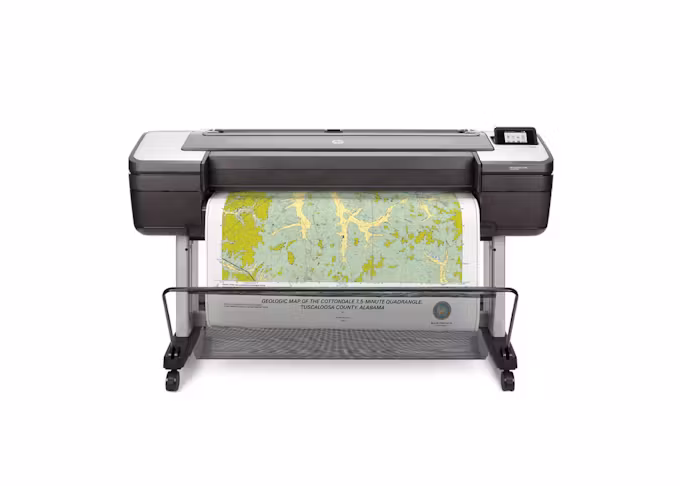

HP DesignJet T1700 ePrinter - DISCONTINUED

Confidently take CAD, GIS color reproduction to the next level with a 44-in HP DesignJet printer that delivers powerful security features, high productivity on even the most complex files, and bright and precise colors.


Key features

Security features
PDF Print Engine
6 HP Bright Office Inks
Line drawings, Renderings, Presentations, Maps, Orthophotos
Other features:

SECURE - Protect your work and your information

  • Protect printers/data from unauthorized access with HP Secure Boot, whitelisting, encrypted hard disk
  • Protect documents, preserve confidentiality with authentication solutions like PIN printing, card readers
  • Secure your printers with HP JetAdvantage Security Manager; manage your fleet remotely with HP Web Jetadmin
  • Control and optimize printing costs with accounting solutions - or with your reseller through HP Partner Link


EFFICIENT - No more PC freezing up

  • Adobe PDF drivers2 free up your computer immediately after sending to print - even for the most complex files
  • No interruptions - dual-roll options reduce roll changes; two rolls double capacity, help switch paper types3
  • Handle complex files—powerful processing architecture, 128 GB memory, 500 GB HDD at 116 A1 pages/hr.
  • Easily print project sets and PDF documents with HP Click printing software


ACCURATE - Make better decisions with precise colors

  • Get bright color and bold image quality - even on plain papers - with HP Bright Office Inks
  • Reproduce transparencies, layers, color palettes, and gradients with embedded Adobe PDF Print Engine
  • Tuned profiles reproduce distinct shades of color; color/gray/photo black inks make soft colors, dark tones
  • Accurately display data—high-density printheads provide 2400 nozzles per inch, enabling 0.1% line accuracy

The most secure, empowering HP DesignJet printer for CAD/GIS workgroups


Device TypePrinter
Product CategoryProduction
Colour or MonoColour
Print SpeedLinear Metres
Mono Output Speed (A4 pages per min)2 x A1's per min
Colour Output Speed (A4 pages per min)2 x A1's per min
Print Resolution(dpi)1200 x 2400 dpi
Output Size279mm to 1118mm (Roll Width)
Output Size MaxA0
Duty Cycle240000
Standard Paper Input Tray 1 (Sheets)Max 1118mm x 50m Roll (Roll 1)
Standard Paper Input Tray 2 (Sheets)Max 1118mm x 50m Roll (Roll 2)
Weight (kg)72
Dimension W x D x H (mm)1802 x 695 x 998 mm
Power Requirements (V / Amp / Hz)240 / 10
Max Power Consumption (kW)0.1kW
