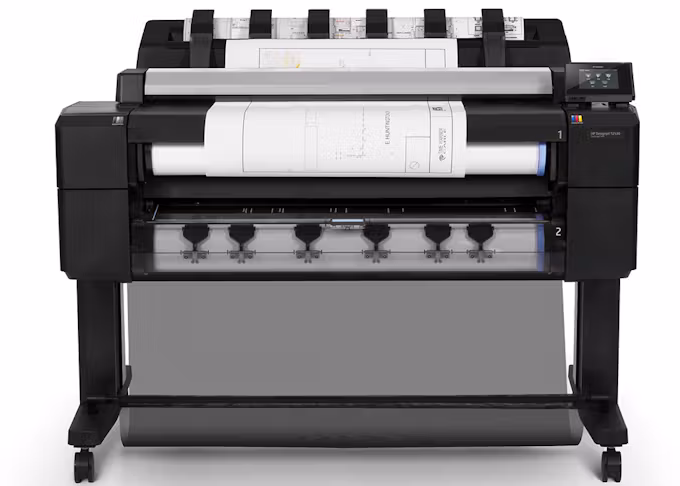

HP DesignJet T2530 Multifunction Printer - DISCONTINUED

Quickly print and scan documents, maps, and drawings with the HP DesignJet T2530 MFP. See high-quality results at fast speeds. Accelerate workflows and handle even the most complex files with this reliable, secure printer.

See latest products


Key features

Print size
D/A1-size prints in 21 seconds
Built-in tray
Built-in tray and two front-loading rolls
Mobile printing capability
Line drawings, Renderings, Presentations, Maps, Orthophotos
Other features:

PROFESSIONAL - Your work in high quality, quickly

  • Present your work in precise, detailed color rendered with 6 Original HP inks including gray and photo black
  • Make your architectural prints shine with professional, high-resolution graphics— opt for Adobe PostScript®
  • Produce professional CAD and GIS drawings with consistent color accuracy, crisp, sharp lines, up to 2400 dpi
  • Produce fast, high-quality results - get A1 size prints in 21 seconds (120 A1/D pages per hour)


PRODUCTIVE - Efficiencies help workgroups save time

  • Convenient access to single control panel for print/scan/copy enables easy, do-ityourself operation
  • Keep workgroups on task - integrated 50-page output stacking tray conveniently delivers flat, collated prints
  • Two rolls provide flexibility - easy front loading, automatic alignment; two media types/sizes, smart switching
  • Print from your mobile device/USB drive with HP Mobile Printing


MANAGEABLE - Secure and easy-to manage for IT

  • From upgrades to network integration, this single, integrated device requires less effort to manage
  • Gain control - initiate front panel access rules, monitor media rolls and printer status, track print jobs
  • Protect your data with IPSec, NTLMv2, SNMPv3, 802.1X, PIN printing, and more security options

Print/scan/copy, share—maximize work group productivity, enterprise security


Device TypeMulti-Function Printer
Product CategoryProduction
Purchase MethodContract
Colour or MonoColour
Print SpeedLinear Metres
Mono Output Speed (A4 pages per min)3 x A1's per min
Colour Output Speed (A4 pages per min)3 x A1's per min
Print Resolution(dpi)1200 x 2400 dpi
Output Size279mm to 914mm (Roll Width)
Output Size MaxA0
Standard Paper Input Tray 1 (Sheets)Max 914mm x 50m Roll (Roll 1)
Standard Paper Input Tray 2 (Sheets)Max 914mm x 50m Roll (Roll 2)
Weight (kg)112
Dimension W x D x H (mm)1399 x 916 x 1110 mm
Power Requirements (V / Amp / Hz)240 / 10
Max Power Consumption (kW)0.120kW
