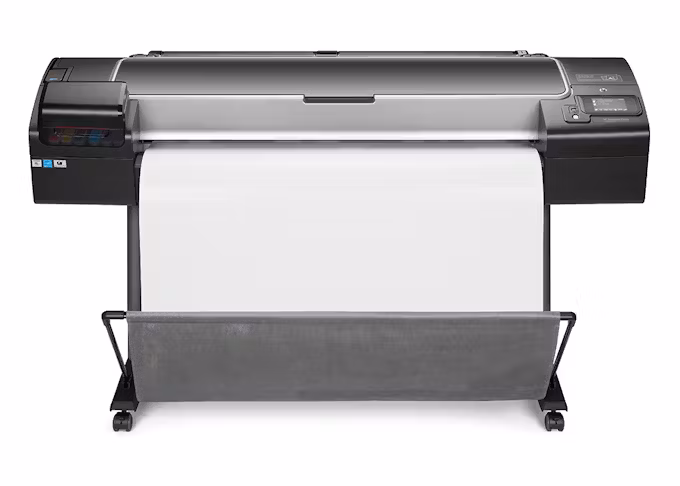

HP DesignJet Z5600 Printer - DISCONTINUED

Print vivid, eye-catching graphics and technical documents with HP chromatic red ink. Multi-roll operation and flexible workflows enable express printing.

See latest products

Key features

Print size
Up to 44-in (1118-mm) roll width
6 HP Vivid Photo Inks up to 300 ml
Output Speed
Up to 41 m²/hr print speed
Maps, Orthophotos, Point of sale/display, Graphics design, Posters, Banners, Exhibition and event graphics, Light boxes - film
Other features:

VIVID Eye-catching, water/faderesistant images

  • Impressive - HP chromatic red ink enhances the color gamut—ideal for high-impact POP signs and posters
  • Versatile - with pigment-based photo inks for GIS, durable maps, technical drawings and photos, canvas
  • Reliable color, line accuracy - HP Professional PANTONE® color emulation, with Adobe® PostScript®/ PDF, HP-GL/2
  • Durable - water/scratch/fade-resistant and archivable prints last up to 200 years with HP Vivid Photo Inks

EXPRESS PRINTING Fast one-click, and multi-roll

  • Boost operator media loading efficiency up to 75%3 with automatic multi-roll printing
  • Print up to 39% faster4 - save time on technical drawings with quick-drying HP Vivid Photo Inks
  • Easy - one-click printing,2 color touchscreen, print preview, direct USB flash drive, email printing
  • Flexible - supports color workflows with genuine Adobe® PostScript® and broad choice of RIPs

SAVINGS Cut costs with HP 6-ink printing system

  • Up to 20% ink consumption savings using HP’s optimized 6-ink printing system
  • No maintenance cartridge—auto drop detection and nozzle switching reduce cleaning, maintain image quality
  • Less operator intervention and more cost-effective printing with 300-ml HP ink cartridges
  • Optimize media usage by autoarranging multiple images on a roll with HP Click printing software

Designed for speed and productivity


Device TypePrinter
Product CategoryProduction
Purchase MethodContract
Colour or MonoColour
Print SpeedLinear Metres
Mono Output Speed (A4 pages per min)4 A0 per min
Colour Output Speed (A4 pages per min)4 A0 per min
Print Resolution(dpi)600 x 2400 dpi
First Time To Print Colour (secs)0
Output Size(Width) 297mm to 914mm x (Length) 210mm to 64 metres
Output Size MaxA0
Sheet Size PPG Only>SRA3
Average Monthly Volume (A4 pages per mth)4000
Average Monthly Print VolumeLinear Metres
Duty Cycle240000
Standard Paper Input Tray 1 (Sheets)Max 914mm x 175 m Roll
Standard Paper Input Tray 2 (Sheets)Max 914mm x 175m Roll
Weight (kg)485
Dimension W x D x H (mm)1500 x 1080 x 1015
Power Requirements (V / Amp / Hz)240 / 16
Max Power Consumption (kW)3.4
