Detects and identifies pallets, including shrink-wrapped ones, quickly and accurately using advanced machine learning, ensuring fast, reliable handling every time.
User-friendly software makes setup simple and scaling fast, reducing deployment time and costs.
Key features
High-capacity battery with fast charging keeps your pallet transport running nonstop, maximising uptime and productivity.
Built to ISO 3691-4 standards with 360° obstacle detection across its entire height for safe, efficient operation in busy environments.
Detects and identifies pallets, including shrink-wrapped ones, quickly and accurately using advanced machine learning, ensuring fast, reliable handling every time.
User-friendly software makes setup simple and scaling fast, reducing deployment time and costs.
High-capacity battery with fast charging keeps your pallet transport running nonstop, maximising uptime and productivity.
Built to ISO 3691-4 standards with 360° obstacle detection across its entire height for safe, efficient operation in busy environments.
Other features
• Installs quickly with no changes to your existing layout.
• Replaces fixed conveyors with flexible, mobile robots.
• Boosts efficiency by automating material handling and logistics.
• Runs 24/7 with low maintenance and fast battery replacement.
• Integrates seamlessly into your current workflows.
• Scales easily to match your growing operational needs.
• No-code setup makes robot configuration fast and simple.

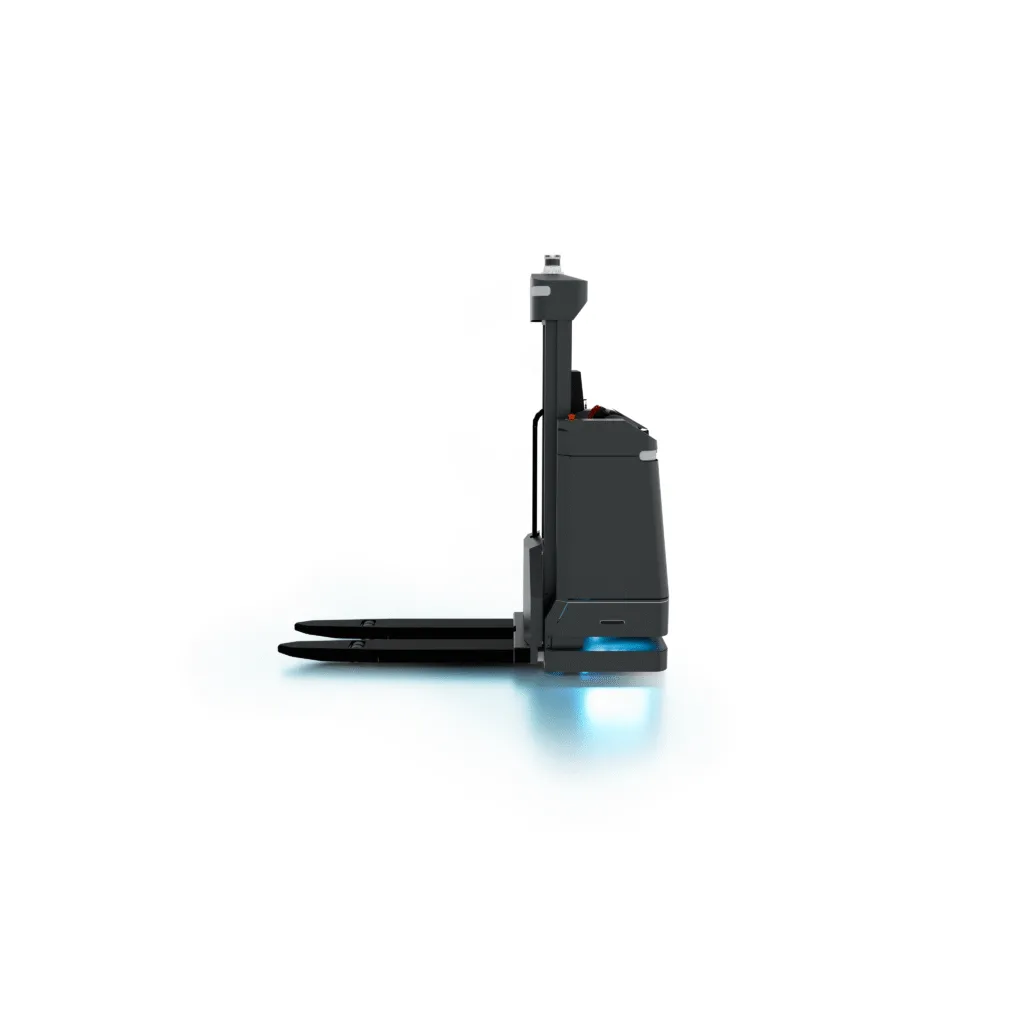

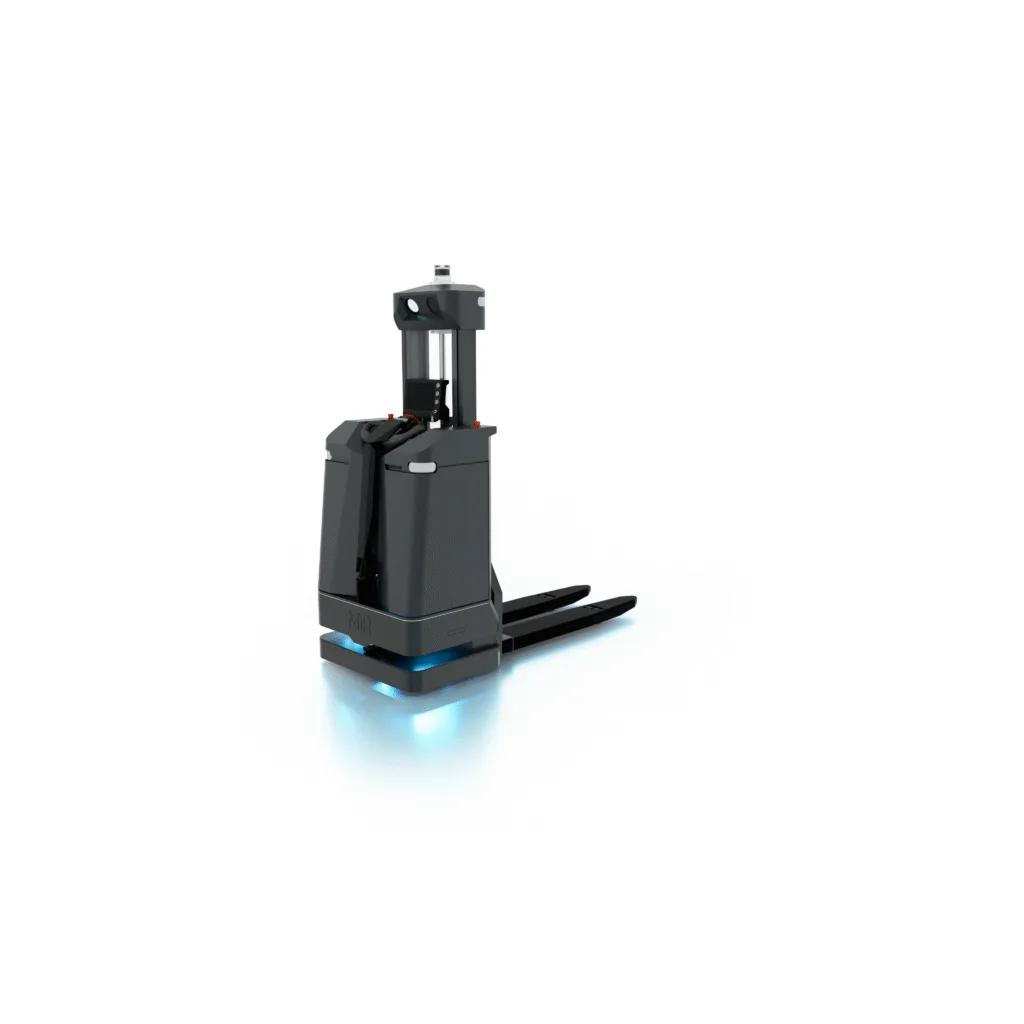

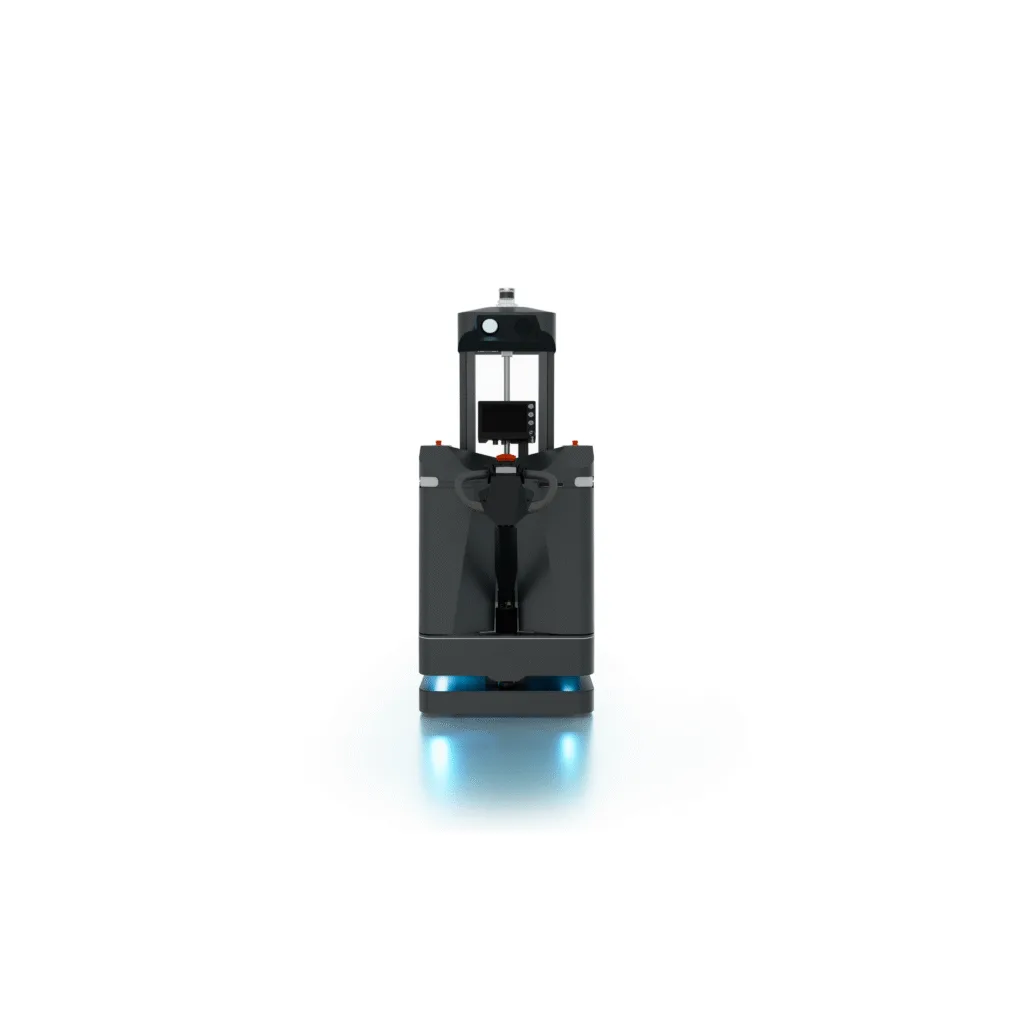

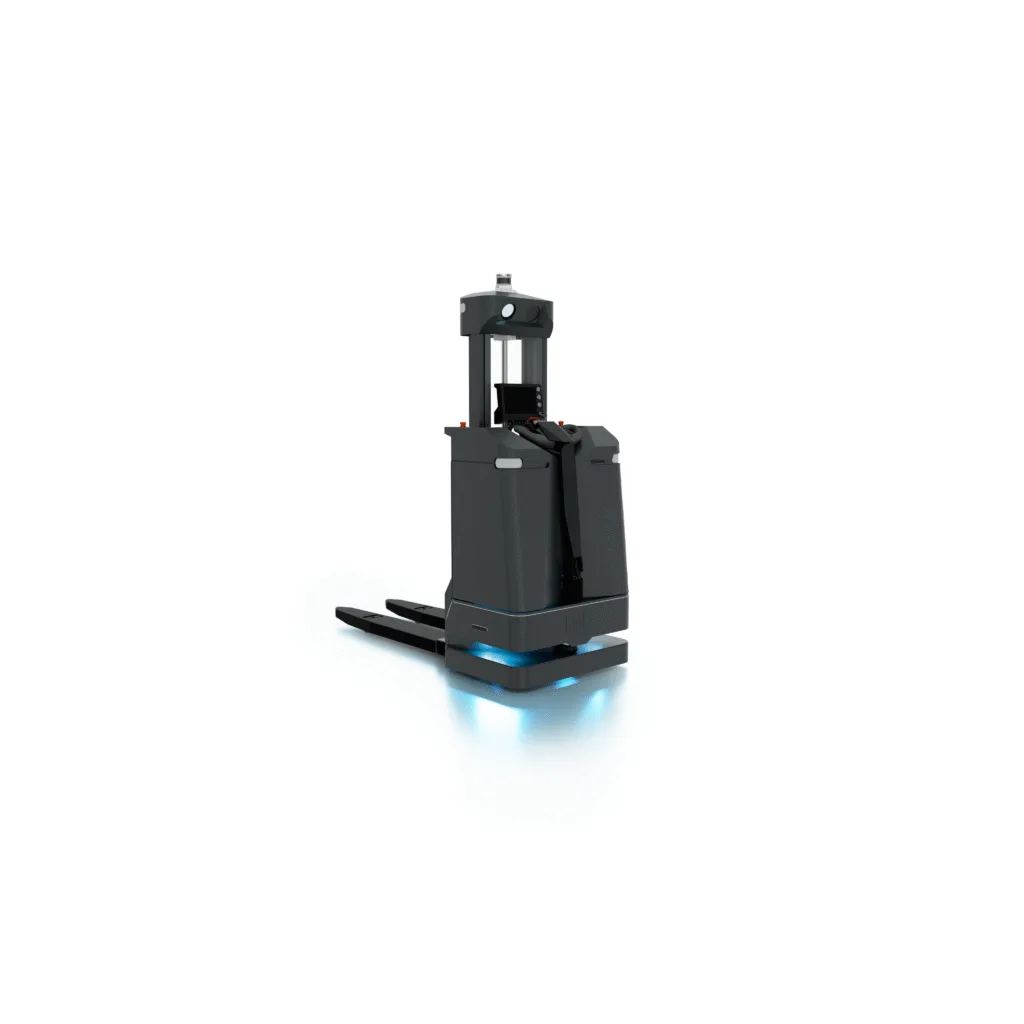

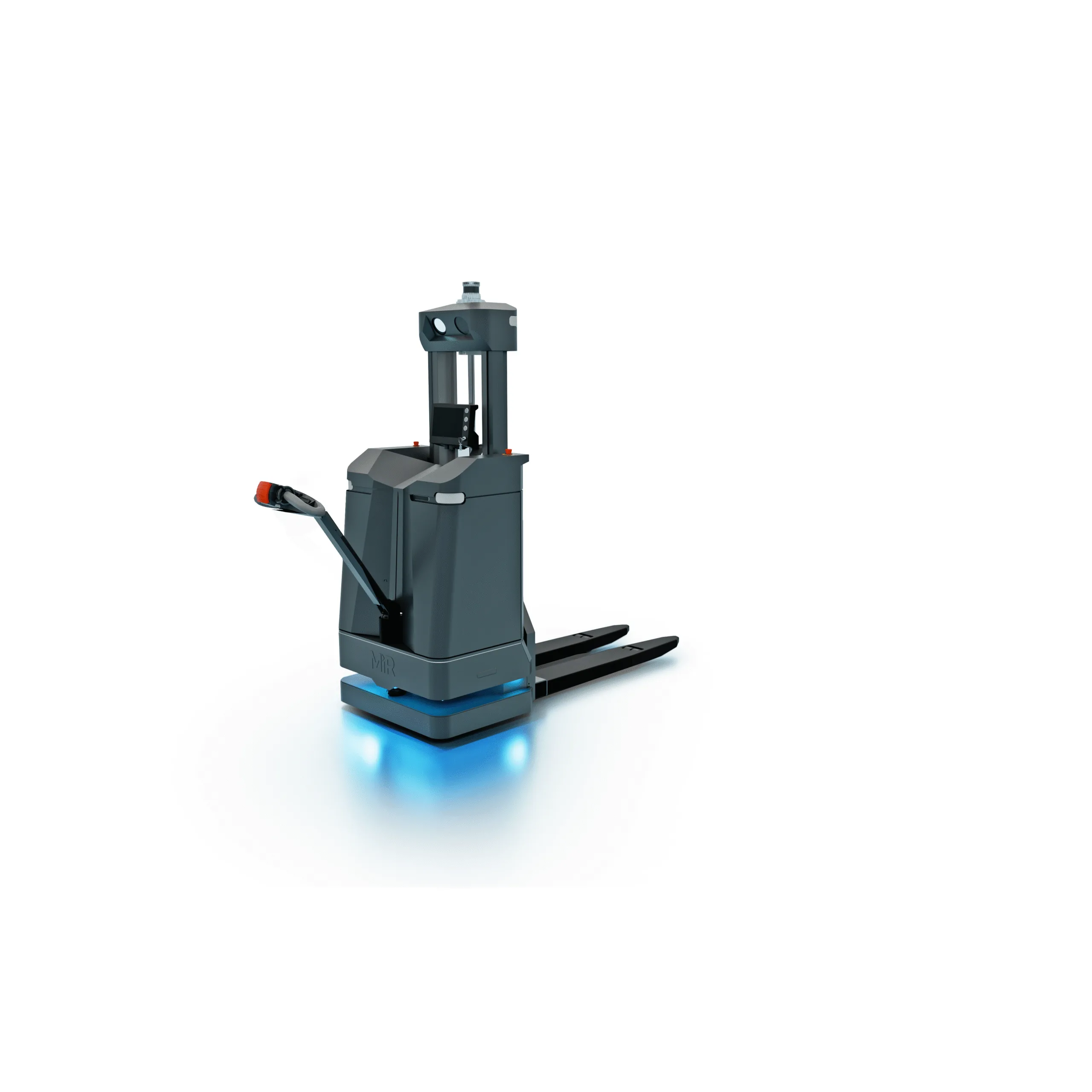

MiR1200 Pallet Jack
Specifications
| Device type | Autonomous Mobile Robot |
|---|---|
| Category | MiR |
| Weight (kg) | 750 |
| Dimension W x D x H (mm) | 820 x 1934 x 2120 mm |
| Power requirements (V / Amp / Hz) | 48 V / 35 A, 48V / 105A |
| Interface | API based Web interface |
| Warranty | 1 year standard |
| Payload Capacity | 1200 kg |
| Maximum Forklift Height | 1140 mm |
| Robotics max speed | 1.5 m/s (5.4 km/h) |
| Battery Charging Time | 10–90% in 52 min |
| Running Time | Up to 7 h 40 m (with mixed payload) |
| Robotics communication | Wi-Fi, Bluetooth, Ethernet |
| EMC | EN ISO 12100:2010, ISO 13849-1:2023, EN ISO 13850:2015, EN ISO 3691-4:2023, EN IEC 61000-6-4:2007/A1:2011, EN IEC 61000-6-2:2005/AC:2005, EN 12895:2015+A1:2019 |
